The Story
General Features
...
The JBL 4309's powerful, 6.5-inch woofer takes advantage of core JBL engineering techniques to ensure very high output with low distortion. The long-throw voice coil — in conjunction with the symmetrical field motor design, flux stabilization ring, and copper shorting ring — guarantee maximum output with low distortion. A pure-pulp cone provides a lightweight, rigid diaphragm and helps to eliminate breakup modes, ensuring proper pistonic motion throughout the operating band.
...
...
...
...
What’s in the box:
Coming Soon!
Key Specifications
- Type: 2-way bookshelf loudspeaker
- Low Frequency Driver: 6.5" (165mm) Pure Pulp cone woofer

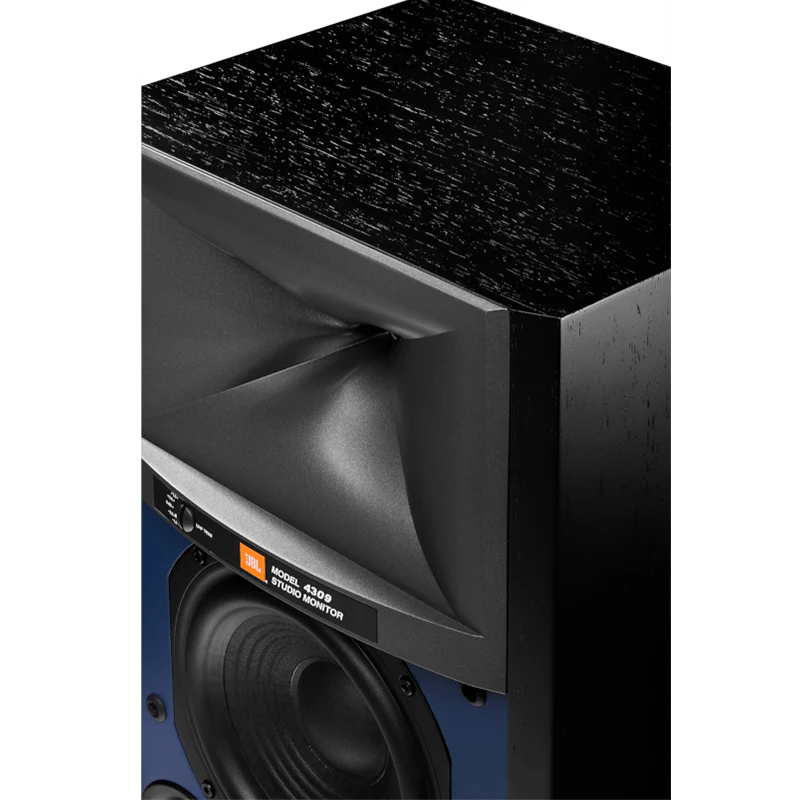

- High Frequency Driver: 2410H-2 1-inch (25mm) annular ring, Teonex diaphragm compression driver with advanced HDI geometry horn
- Recommended Amplifier Power: 25 - 150 WRMS
- Impedance: 4 Ohm
- Loudspeaker Sensitivity: 87 dB/2.83V/1m
- Frequency Response: 42 Hz - 30 kHz (-6 dB)
- Coverage Angle, -6 dB: 100 Degrees Hor. x 80 Degrees Ver., from 2kHz to 17kHz
- Crossover Frequency: 1.6 kHz
- Enclosure Type: H-braced front-ported bookshelf
- Grille Feature: Monitor style to match horn mating features, supplied in dark blue (with walnut cabinet) and black (with black cabinet)

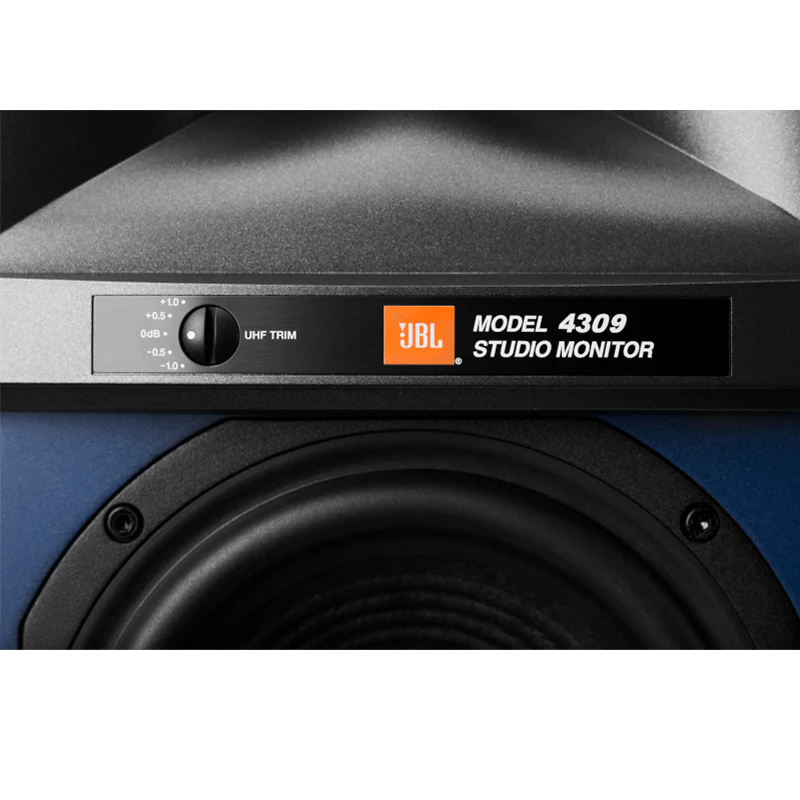

- Controls: UHF tone control

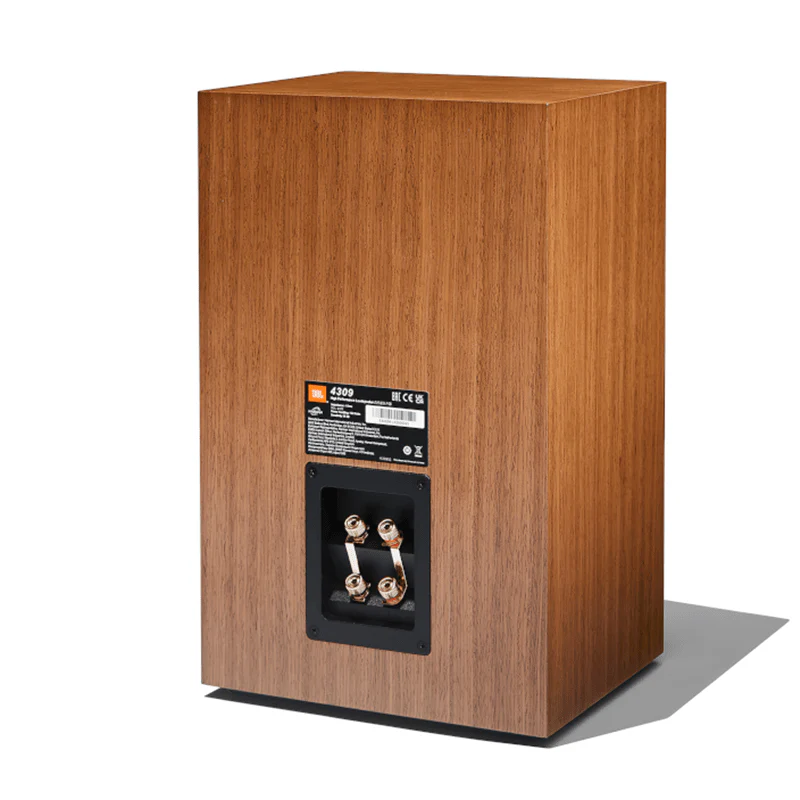

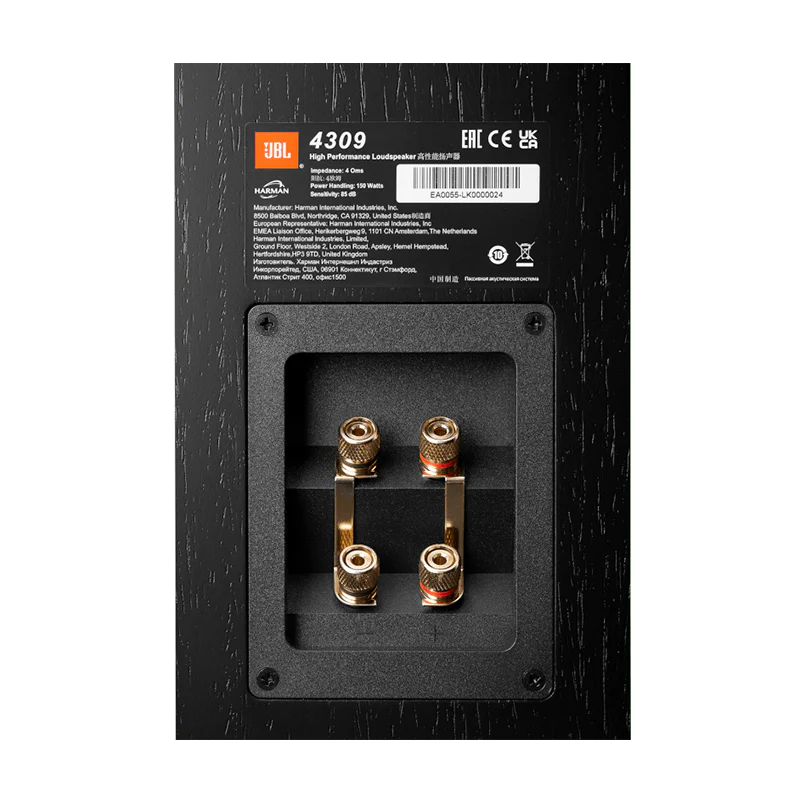

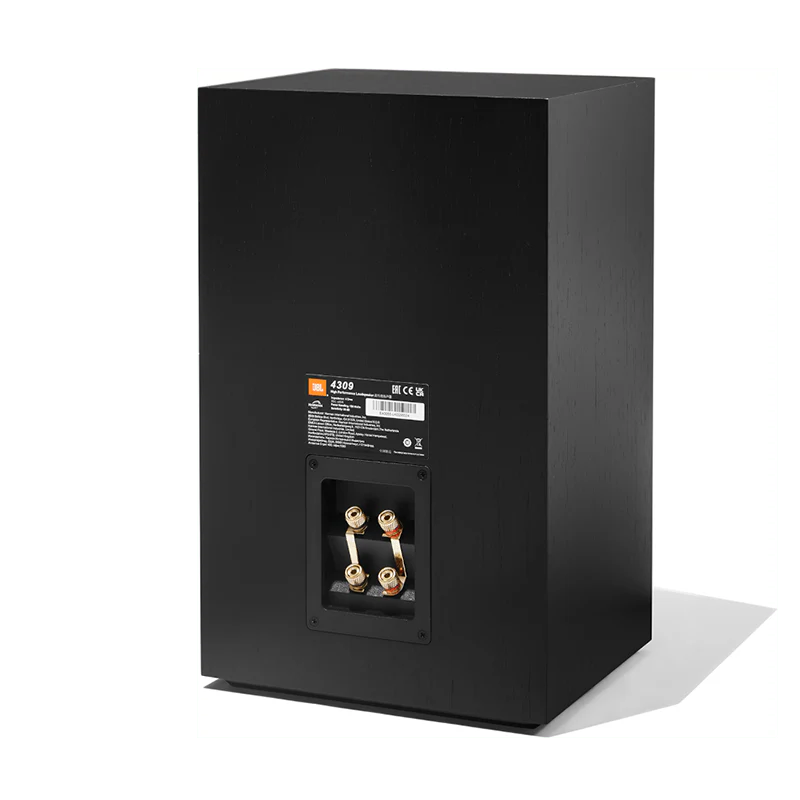

- Input Type: Dual sets of gold-plated binding posts with shorting straps
- Dimensions (HWD): 16.5" x 10.25" x 9"
- Weight: 24.2 lbs.
- Warranty: 5 Years
- Recommended stand height: 24"
